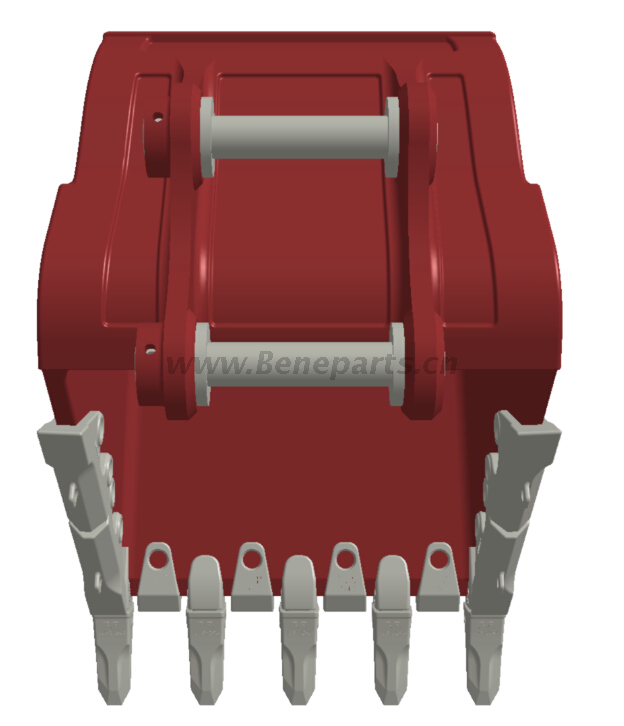

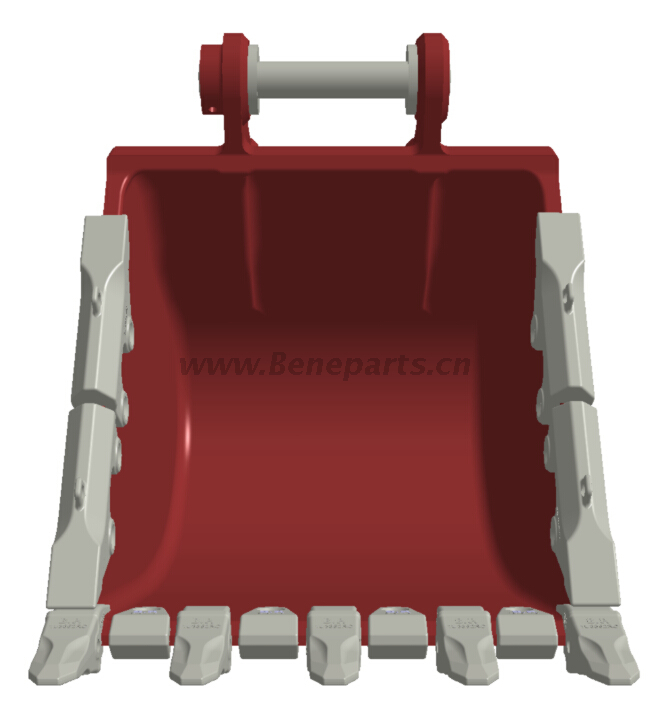

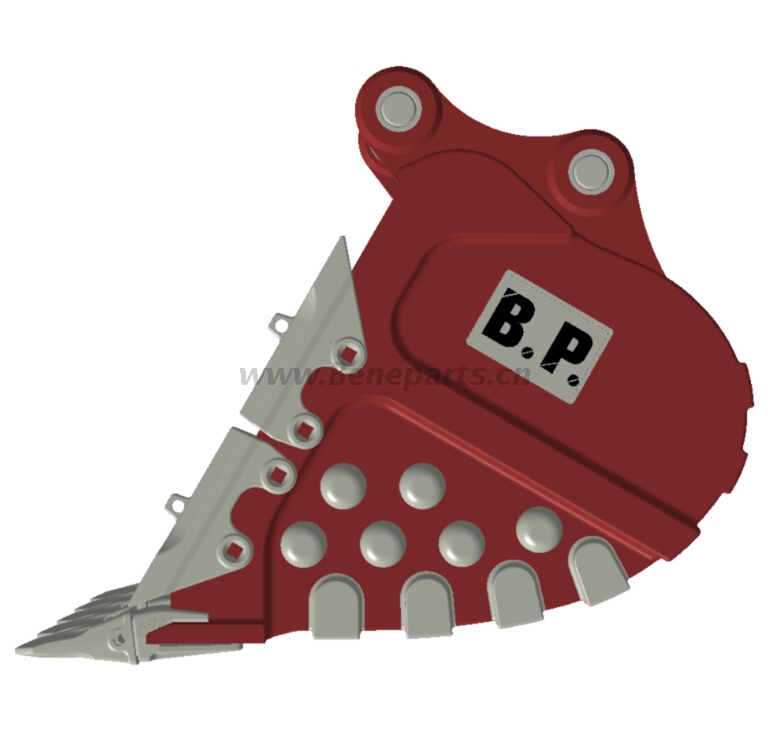

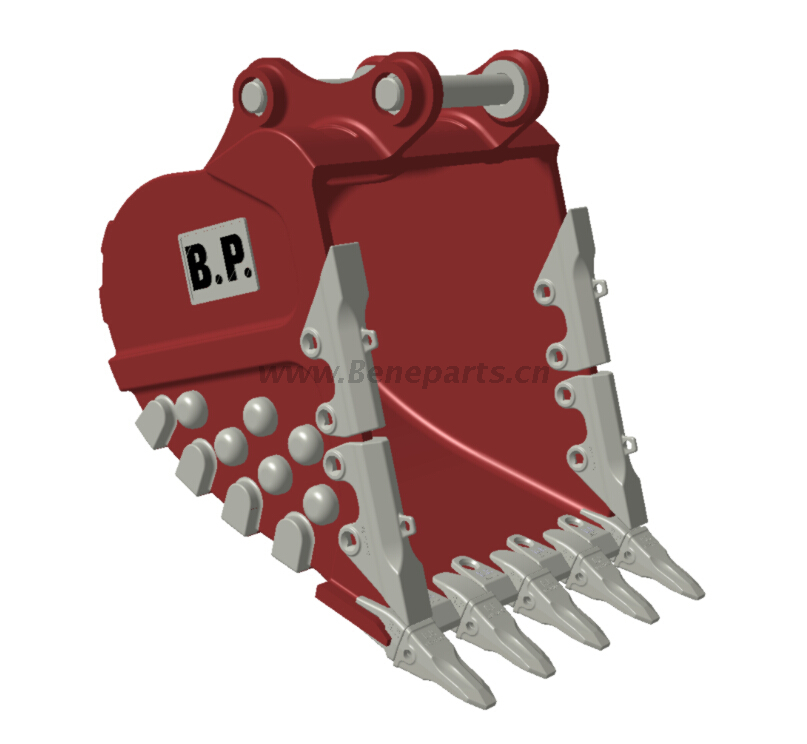

1.6m³ excavator bucket heavy duty type

Type: Heavy duty type

Weight (KGS/LBS): 1580/3483.30

Struck Capacity (m³/yd³): 0.98/1.28

Rated Capacity (m³/yd³): 1.29/1.69

Opening (mm/INS): 1380/54.33

Depth (mm/INS): 930/36.61

Width (mm/INS): 1180/46.46

Teeth QTY: 6

Lip Thickness(mm/INS): 50/1.97

Quantity:


NameExcavator bucket
TypeHeavy duty
Weight (KGS/LBS)2000/4409.25
Struck Capacity (m³/yd³)0.98/1.28
Rated Capacity (m³/yd³)1.29/1.69
Opening (mm/INS)1380/54.33
Depth (mm/INS)930/36.61
Width (mm/INS)1180/46.46
Teeth QTY6
Lip Thickness
(mm/INS)
50/1.97


BrandBeneparts
MOQ1pcs
WarrantyOne Year
Bucket DesignHeavy duty flat floor design with outside bottom wear strips, upper and lower side kick plates.
Bucket ShapeStraight or spade lip, vertical shrouds, optional weld-on lip shrouds or J-bolt lip shrouds. Enhanced bucket shap allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
Superior bucket fillOptimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.
ApplicationApplicable to slope-surface trimming,waterways dredging,water ditching,etc. Designed for a wide variety of applications and materials. Kindly recommended for dirt, loam, gravel, loose clay, non-abrasive soils with limited rock.
Excavator BrandsThe products we offer are fitted for all of the world famous excavator brands, such as Kobelco, Hitachi, Sany, Volvo, XGMG, Takenchi, etc.


CaterpillarE70 E110 E120B E180 E200B E240 E300B E307 CAT311 CAT312 E320 E325 E330 E450 MS180
KomatsuPC40-7 PC60-5-6-7 PC75 PC100-3-5 PC120-5 PC130 PC200-2-3-4-5-6-7-8 PC220-1-3-5 PC230 PC240 PC300-1-5-6-7 PC400-1-3-5
VolvoEC55B EC60C EC140B EC200B EC210B EC240B EC290B EC360B EC460B EC550
HitachiEX40 EX55 ZX55 EX55-5B EX60-2-3 EX70(ZX70) EX100M EX100-1-2-3-5 EX120 EX150 EX160 EX200-1-2-3-5 ZX200 ZX210 EX220 ZX230           EX300-1-2-3-5 EX330 EX400 UH08 UH07 UH10 UH14
SumitomoSH60 SH65 SH100 SH120-A3 SH120 SH200 SH220-1-5 SH260 SH280 SH300-1-2-3 SH340 SH580-5 S25 S35 S120 S160 S250 S260 S265F2 S280 S280F2 S280FA
KobelcoSK30 SK40 SK60 SK100 SK120 SK200-1-6 SK220-1-3 SK230-3-6 SK300 SK320 SK07-1-2-7 SK07N2 SK09
DaewooDH55 DH60 DH70 DH80 DH150 DH150W DH175 DH200 DH210 DH215-7-9 DH220-3-5-7 DH225 DH255 DH258 DH280 DH300 DH320 DH330 DH340 DH370 DH400
KatoHD250 HD250SE HD400 HD450 HD500 HD510 HD550 HD550SE HD650 HD700 HD770 HD800 HD1250 HD1430
HyundaiR55 R60-5-7-9 R80 R110 R130-1-2-7 R150 R190 R200-1-2 R210 R215 R220 R225-7 R265 R290 R305 R455
BulldozerD20 D31 D50 D60 D65 D30 D40 D60-3 D6B D5 D80 D85 D3C D4C D4D D75 D80A-7 D4E D4H-1 D31-15 D31-18 D50-15 D50-16 D6D D5H D8N D9N D155 D31 D355 D10
