3G8295

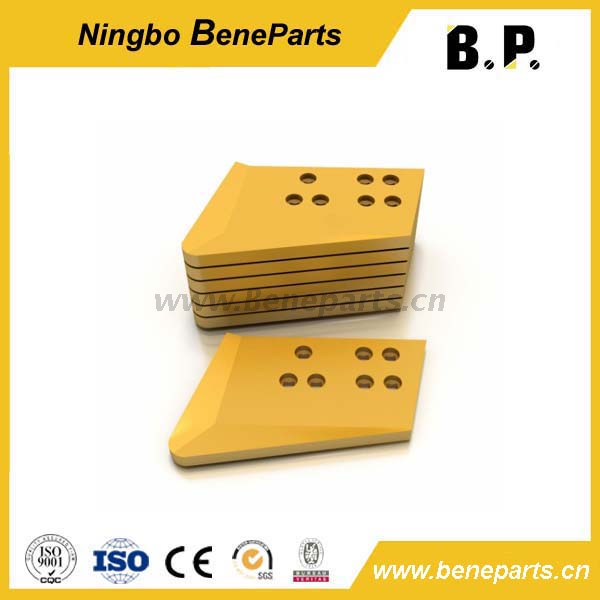

Description: Dozer End Bit

Brand: Caterpillar

Logo: BP(Beneparts)

Color: Can be customized

Weight: 14.6Kg

Measure: 402mmX203mmX25mm 5/8"X6
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button


Part No.:3G8295
Description:Dozer End Bit
Applied Machine:Caterpillar Bulldozer
Material:Heat treated Boron steel (30MnB)
Hardness:HB450-500
Measurement:402mmX203mmX25mm  5/8"X6
Weight:14.6Kg
Length A :402mm
Width B:203mm
Thicknes C:25mm

Bolt:5/8" plow bolt
Bolt Qty.:6
Part NumberMeasurement (mm)DescriptionBrandWeight(Kgs)
1U4183487mmX254mmX30mm  1"X7Dozer End BitCAT23.9
8J8120531mmX254mmX30mm  1"X7Dozer End BitCAT28
8J8105531mmX254mmX30mm  1"X7Dozer End BitCAT28
5J8768531mmX254mmX30mm  7/8"X7Dozer End BitCAT28
5J8767531mmX254mmX30mm  7/8"X7Dozer End BitCAT28
5J9628531mmX254mmX25mm  7/8"X7Dozer End BitCAT25
5J9627531mmX254mmX25mm  7/8"X7Dozer End BitCAT25
9J1474531mmX254mmX40mm  1"X7Dozer End BitCAT39.3
9J1475531mmX254mmX40mm  1"X7Dozer End BitCAT39.3
7J3458531mmX254mmX40mm  7/8"X7Dozer End BitCAT37.4
7J3457531mmX254mmX40mm  7/8"X7Dozer End BitCAT37.4
1U0181409.1mmX254mmX25mm  7/8"X7Dozer End BitCAT18.1
1U0182409.1mmX254mmX25mm  7/8"X7Dozer End BitCAT18.1
7T6587600mmX280mmX35mm  7/8"X7Dozer End BitCAT42
7T6588600mmX280mmX35mm  7/8"X7Dozer End BitCAT42
7J6712583mmX330mmX35mm  1"X7Dozer End BitCAT46.8
7J6711583mmX330mmX35mm  1"X7Dozer End BitCAT46.8
7J3464583mmX330mmX40mm  1"X7Dozer End BitCAT53.1
7J3463583mmX330mmX40mm  1"X7Dozer End BitCAT53.1
5J9322506.7mmX330mmX30mm  1"X7Dozer End BitCAT33.7
