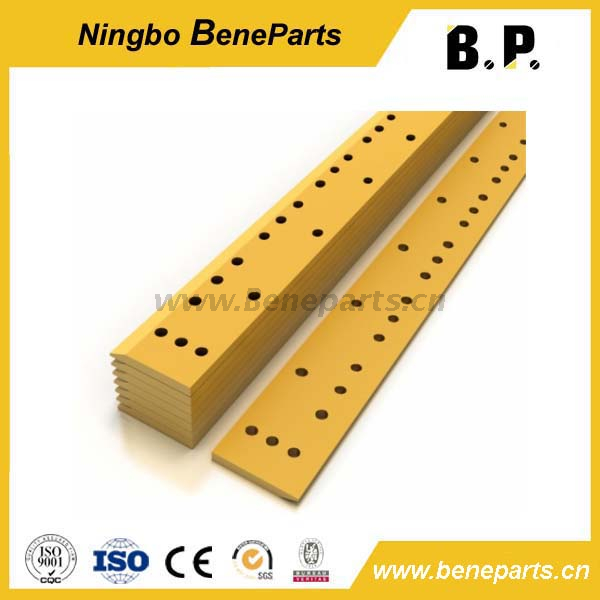

425-70-1221

Description: Loader SBF Cutting Edge

Brand: Komatsu

Logo: BP(Beneparts)

Color: Can be customized

Weight: 233Kg

Measure: 3032mmX300mmX35mm Φ36X18
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button


Part No.:425-70-1221
Description:Single bevel cutting edge
Applied Machine:Komatsu Loader
Model.:
Material:Carbon steel, Boron steel (30MnB)
Hardness:HB300-350, HB400-450

Measurement:
Weight:233Kg
Width:300mm
Thickness:35mm
Length:3032mm
Bolt:Φ36 plow bolt
Bolt Qty.:18
Part NumberMeasurement (mm)DescriptionBrandWeight(Kgs)
425-70-12213032mmX300mmX35mm  Φ36X18SBF Cutting EdgeKomatsu233
425-70-11222920mmX268mmX30mm  Φ28.5X24SBF Cutting EdgeKomatsu168
425-70-11603312mmX300mmX45mm  Φ36X30SBF Cutting EdgeKomatsu321.9
7V41883315mmX300mmX40mm  Φ36X18SBF Cutting EdgeCAT293
9V65743314.2mmX304.8mmX45mm  Φ35X30SBF Cutting EdgeCAT332
6W29862413mmX245mmX25mm  Φ27X30SBF Cutting EdgeCAT112
5V46612407.4mmX245mmX25mm  Φ27X16SBF Cutting EdgeCAT115
5V74232439mmX245mmX25mm  Φ27X18SBF Cutting EdgeCAT111
5V72762614mmX245mmX25mm  Φ27X18SBF Cutting EdgeCAT125
141-48472920.2mmX282mmX30mm  Φ27X30SBF Cutting EdgeCAT176
9V65293030mmX282mmX30mm  Φ35X30SBF Cutting EdgeCAT190
5G30852150.4mmX190.5mmX19mm  Φ20.6X14SBF Cutting EdgeCAT60
5G28092079.6mmX190.5mmX19mm  Φ20.6X14SBF Cutting EdgeCAT58
5G83422364.7mmX190.5mmX19mm  Φ20.6X28SBF Cutting EdgeCAT64
9V65753041.7mmX304.8mmX40mm  Φ35X30SBF Cutting EdgeCAT268.2
6W29892840mmX282mmX30mm  Φ36X12SBF Cutting EdgeCAT178
6I52481250mmX300mmX40mmSBF Cutting EdgeCAT112
6I52341350mmX300mmX40mmSBF Cutting EdgeCAT121
3G63641300mmX300mmX35mmSBF Cutting EdgeCAT102
105-23452681mmX245mmX25mm  Φ27X28SBF Cutting EdgeCAT116.2
6W29852639mmX245mmX25mm  Φ28X28SBF Cutting EdgeCAT113.5
6W29902856mmX282mmX30mm  Φ36X30SBF Cutting EdgeCAT169.1
5V46962736mmX282mmX30mm  Φ28X18SBF Cutting EdgeCAT166.2
9R46722262mmX150mmX19mm  Φ17.5X16SBF Cutting EdgeCAT47
