4j5012

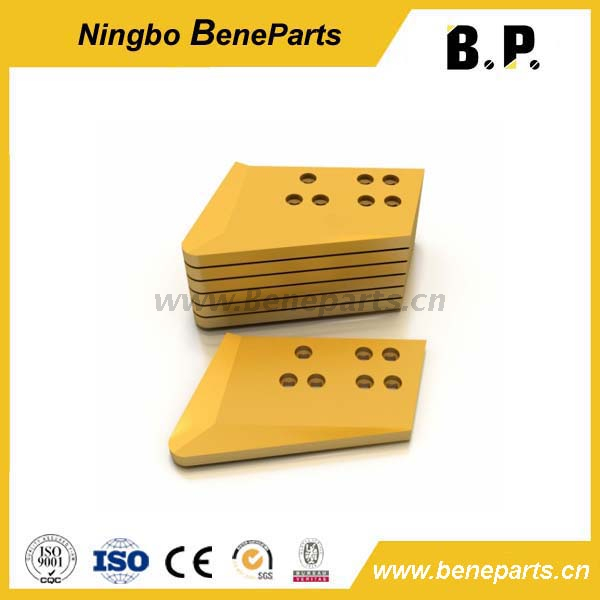

Description: Dozer End Bit

Brand: Caterpillar

Logo: BP(Beneparts)

Color: Can be customized

Weight: 15Kg

Measure: 374mmX203mmX25mm 3/4"X6

Quantity:


Part No.:4J5012
Description:HC Dozer end bit
Applied Machine:Caterpillar bulldozer
Model.:
Material:Heat treated Boron steel (30MnB)
Hardness:HB400-450
Measurement:374mmX203mmX25mm  3/4"X6
Weight:15Kg
Length A :374mm
Width B:203mm
Thicknes C:25mm

Bolt:3/4'' plow bolt
Bolt Qty.:6
Part NumberMeasurement (mm)DescriptionBrandWeight(Kgs)
8E4542HD60722mmX406mmX60mm  1-1/4"X7Dozer End BitCAT126
8E4541HD60722mmX406mmX60mm  1-1/4"X7Dozer End BitCAT126
175-71-11182630mmX315mmX35mm  7/8"X7Dozer End BitKomatsu46
175-71-11172630mmX315mmX35mm  7/8"X7Dozer End BitKomatsu46
8J6412330mmX165mmX16mm  5/8"X3Dozer End BitCAT6
9W9012381mmX203mmX19mm  5/8"X6Dozer End BitCAT10.9
9W9013381mmX203mmX19mm  5/8"X6Dozer End BitCAT10.9
9W9016349.3mmX203mmX16mm  5/8"X6Dozer End BitCAT10.6
9W9017349.3mmX203mmX16mm  5/8"X6Dozer End BitCAT10.6
6J0896402mmX203mmX25mm  3/4"X6Dozer End BitCAT14.6
6J0895402mmX203mmX25mm  3/4"X6Dozer End BitCAT14.6
6J0894402mmX203mmX25mm  5/8"X6Dozer End BitCAT14.6
6J0893402mmX203mmX25mm  5/8"X6Dozer End BitCAT14.6
4J5012374mmX203mmX25mm  3/4"X6Dozer End BitCAT15
4J5011374mmX203mmX25mm  3/4"X6Dozer End BitCAT15
8J7163377.2mmX203mmX19mm  3/4"X6Dozer End BitCAT9.7
8J7162377.2mmX203mmX19mm  3/4"X6Dozer End BitCAT9.7
6J0278431mmX203mmX25mm  5/8"X6Dozer End BitCAT16.8
6J0277431mmX203mmX25mm  5/8"X6Dozer End BitCAT16.8
6J0276431mmX203mmX25mm  3/4"X6Dozer End BitCAT16.8
6J0275431mmX203mmX25mm  3/4"X6Dozer End BitCAT16.8
6J8922388.9mmX254mmX25mm  7/8"X7Dozer End BitCAT16.1
6J8921388.9mmX254mmX25mm  7/8"X7Dozer End BitCAT16.1
5J6922419.1mmX254mmX25mm  3/4"X7Dozer End BitCAT17.8
5J6921419.1mmX254mmX25mm  3/4"X7Dozer End BitCAT17.8
1J9494468.4mmX254mmX30mm  7/8"X7Dozer End BitCAT26
1J9493468.4mmX254mmX30mm  7/8"X7Dozer End BitCAT26
5J6930407.9mmX254mmX25mm  3/4"X7Dozer End BitCAT18
5J6929407.9mmX254mmX25mm  3/4"X7Dozer End BitCAT18
8J8116493mmX260mmX30mm  1"X7Dozer End BitCAT29
8J8117493mmX260mmX30mm  1"X7Dozer End BitCAT29
9J1472504mmX254mmX40mm  1"X7Dozer End BitCAT35.2
9J1473504mmX254mmX40mm  1"X7Dozer End BitCAT35.2
7J3460504mmX254mmX40mm  7/8"X7Dozer End BitCAT38.2
7J3459504mmX254mmX40mm  7/8"X7Dozer End BitCAT38.2
2J2572490mmX254mmX30mm  7/8"X7Dozer End BitCAT27
2J2571490mmX254mmX30mm  7/8"X7Dozer End BitCAT27
1U4184487mmX254mmX30mm  1"X7Dozer End BitCAT23.9
1U4183487mmX254mmX30mm  1"X7Dozer End BitCAT23.9
8J8120531mmX254mmX30mm  1"X7Dozer End BitCAT28
8J8105531mmX254mmX30mm  1"X7Dozer End BitCAT28
5J8768531mmX254mmX30mm  7/8"X7Dozer End BitCAT28
5J8767531mmX254mmX30mm  7/8"X7Dozer End BitCAT28
5J9628531mmX254mmX25mm  7/8"X7Dozer End BitCAT25
5J9627531mmX254mmX25mm  7/8"X7Dozer End BitCAT25
9J1474531mmX254mmX40mm  1"X7Dozer End BitCAT39.3
9J1475531mmX254mmX40mm  1"X7Dozer End BitCAT39.3
7J3458531mmX254mmX40mm  7/8"X7Dozer End BitCAT37.4
7J3457531mmX254mmX40mm  7/8"X7Dozer End BitCAT37.4
1U0181409.1mmX254mmX25mm  7/8"X7Dozer End BitCAT18.1
1U0182409.1mmX254mmX25mm  7/8"X7Dozer End BitCAT18.1
7T6587600mmX280mmX35mm  7/8"X7Dozer End BitCAT42
7T6588600mmX280mmX35mm  7/8"X7Dozer End BitCAT42
7J6712583mmX330mmX35mm  1"X7Dozer End BitCAT46.8
7J6711583mmX330mmX35mm  1"X7Dozer End BitCAT46.8
7J3464583mmX330mmX40mm  1"X7Dozer End BitCAT53.1
7J3463583mmX330mmX40mm  1"X7Dozer End BitCAT53.1
5J9322506.7mmX330mmX30mm  1"X7Dozer End BitCAT33.7
5J9321506.7mmX330mmX30mm  1"X7Dozer End BitCAT33.7
9W6192585mmX330mmX50mm  1"X7Dozer End BitCAT70
9W6193585mmX330mmX50mm  1"X7Dozer End BitCAT70
7T9090585mmX330mmX40mm  1"X7Dozer End BitCAT57.6
7T9089585mmX330mmX40mm  1"X7Dozer End BitCAT57.6
7T9092569mmX330mmX55mm  1"X7Dozer End BitCAT74.4
7T9093569mmX330mmX55mm  1"X7Dozer End BitCAT74.4
9W6194607mmX330mmX45mm  1"X7Dozer End BitCAT68
9W6195607mmX330mmX45mm  1"X7Dozer End BitCAT68
1J1986584mmX330mmX35mm  1"X7Dozer End BitCAT48.3
1J1985584mmX330mmX35mm  1"X7Dozer End BitCAT48.3
7J6714681mmX330mmX35mm  1"X7Dozer End BitCAT58.5
7J6713681mmX330mmX35mm  1"X7Dozer End BitCAT58.5
7J3462681mmX330mmX40mm  1"X7Dozer End BitCAT65.1
7J3461681mmX330mmX40mm  1"X7Dozer End BitCAT65.1
3G4209588.4mmX330mmX30mm  1"X5Dozer End BitCAT42.8
9W6197691mmX406mmX60mm  1-1/4"X7Dozer End BitCAT113.8
9W6196691mmX406mmX60mm  1-1/4"X7Dozer End BitCAT113.8
7T4096722mmX406mmX50mm  1-1/4"X7Dozer End BitCAT105
7T4097722mmX406mmX50mm  1-1/4"X7Dozer End BitCAT105
9W4492821mmX412mmX50mm  1-1/4"X7Dozer End BitCAT127.3
