7t4092

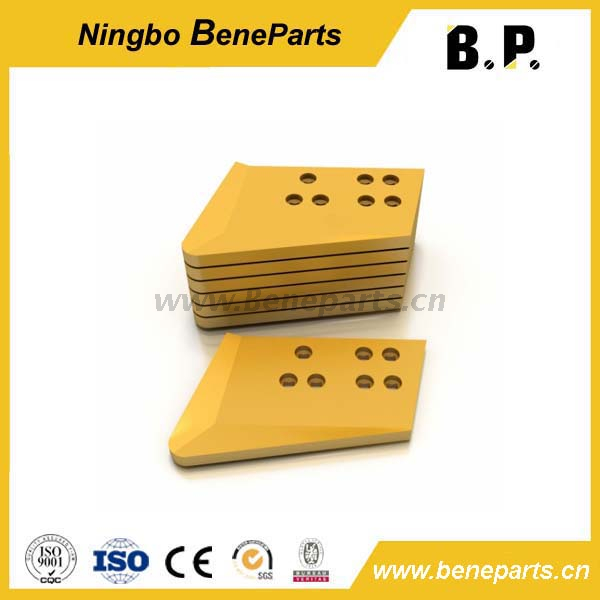

Description: Dozer End Bit

Brand: Caterpillar

Logo: BP(Beneparts)

Color: Can be customized

Weight: 129.3Kg

Measure: 702mmX343mmX70mm 1"X7
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button


Part No.:7T4092
Description:Dozer End Bit
Applied Machine:Caterpillar BullDozer

Material:Carbon steel, Boron steel (30MnB)
Hardness:HB300-350, HB440-480

Applied Machine702mmX343mmX70mm  1"X7
Weight:129.3Kg
Width:343mm
Length:702mm
Thickness70mm

Bolt7"
Bolt Qty1
Part NumberMeasurement (mm)DescriptionWeight(Kgs)
8E4542HD60722mmX406mmX60mm  1-1/4"X7Dozer End Bit126
8E4541HD60722mmX406mmX60mm  1-1/4"X7Dozer End Bit126
175-71-11182630mmX315mmX35mm  7/8"X7Dozer End Bit46
175-71-11172630mmX315mmX35mm  7/8"X7Dozer End Bit46
8J6412330mmX165mmX16mm  5/8"X3Dozer End Bit6
9W9012381mmX203mmX19mm  5/8"X6Dozer End Bit10.9
9W9013381mmX203mmX19mm  5/8"X6Dozer End Bit10.9
9W9016349.3mmX203mmX16mm  5/8"X6Dozer End Bit10.6
9W9017349.3mmX203mmX16mm  5/8"X6Dozer End Bit10.6
6J0896402mmX203mmX25mm  3/4"X6Dozer End Bit14.6
6J0895402mmX203mmX25mm  3/4"X6Dozer End Bit14.6
6J0894402mmX203mmX25mm  5/8"X6Dozer End Bit14.6
6J0893402mmX203mmX25mm  5/8"X6Dozer End Bit14.6
4J5012374mmX203mmX25mm  3/4"X6Dozer End Bit15
4J5011374mmX203mmX25mm  3/4"X6Dozer End Bit15
8J7163377.2mmX203mmX19mm  3/4"X6Dozer End Bit9.7
8J7162377.2mmX203mmX19mm  3/4"X6Dozer End Bit9.7
6J0278431mmX203mmX25mm  5/8"X6Dozer End Bit16.8
6J0277431mmX203mmX25mm  5/8"X6Dozer End Bit16.8
6J0276431mmX203mmX25mm  3/4"X6Dozer End Bit16.8
6J0275431mmX203mmX25mm  3/4"X6Dozer End Bit16.8
6J8922388.9mmX254mmX25mm  7/8"X7Dozer End Bit16.1
6J8921388.9mmX254mmX25mm  7/8"X7Dozer End Bit16.1
