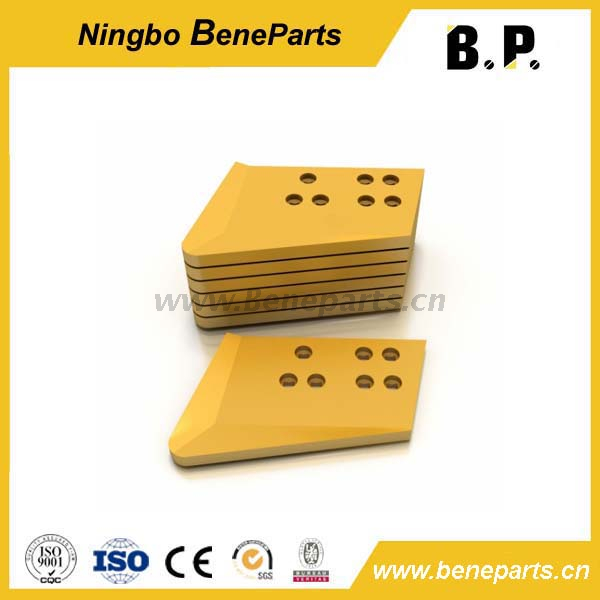

8e9786

Description: Dozer End Bit

Brand: Caterpillar

Logo: BP(Beneparts)

Color: Can be customized

Weight: 119.80Kg

Measure: 770mmX371mmX60mm 1-1/4"X9
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button


Part No.:8E9786
Description:Dozer End Bit
Applied Machine:Caterpillar BullDozer

Material:Carbon steel, Boron steel (30MnB)
Hardness:HB300-350, HB440-480

Weight:119.8Kg
Width:371mm
Length:770mm
Thickness60mm
Bolt1-1/4"
Bolt Qty9
Part NumberMeasurement (mm)DescriptionWeight(Kgs)
7J3460504mmX254mmX40mm  7/8"X7Dozer End Bit38.2
7J3459504mmX254mmX40mm  7/8"X7Dozer End Bit38.2
2J2572490mmX254mmX30mm  7/8"X7Dozer End Bit27
2J2571490mmX254mmX30mm  7/8"X7Dozer End Bit27
1U4184487mmX254mmX30mm  1"X7Dozer End Bit23.9
1U4183487mmX254mmX30mm  1"X7Dozer End Bit23.9
8J8120531mmX254mmX30mm  1"X7Dozer End Bit28
8J8105531mmX254mmX30mm  1"X7Dozer End Bit28
5J8768531mmX254mmX30mm  7/8"X7Dozer End Bit28
5J8767531mmX254mmX30mm  7/8"X7Dozer End Bit28
5J9628531mmX254mmX25mm  7/8"X7Dozer End Bit25
5J9627531mmX254mmX25mm  7/8"X7Dozer End Bit25
9J1474531mmX254mmX40mm  1"X7Dozer End Bit39.3
9J1475531mmX254mmX40mm  1"X7Dozer End Bit39.3
7J3458531mmX254mmX40mm  7/8"X7Dozer End Bit37.4
7J3457531mmX254mmX40mm  7/8"X7Dozer End Bit37.4
1U0181409.1mmX254mmX25mm  7/8"X7Dozer End Bit18.1
1U0182409.1mmX254mmX25mm  7/8"X7Dozer End Bit18.1
7T6587600mmX280mmX35mm  7/8"X7Dozer End Bit42
7T6588600mmX280mmX35mm  7/8"X7Dozer End Bit42
7J6712583mmX330mmX35mm  1"X7Dozer End Bit46.8
7J6711583mmX330mmX35mm  1"X7Dozer End Bit46.8
7J3464583mmX330mmX40mm  1"X7Dozer End Bit53.1
7J3463583mmX330mmX40mm  1"X7Dozer End Bit53.1
5J9322506.7mmX330mmX30mm  1"X7Dozer End Bit33.7
5J9321506.7mmX330mmX30mm  1"X7Dozer End Bit33.7
