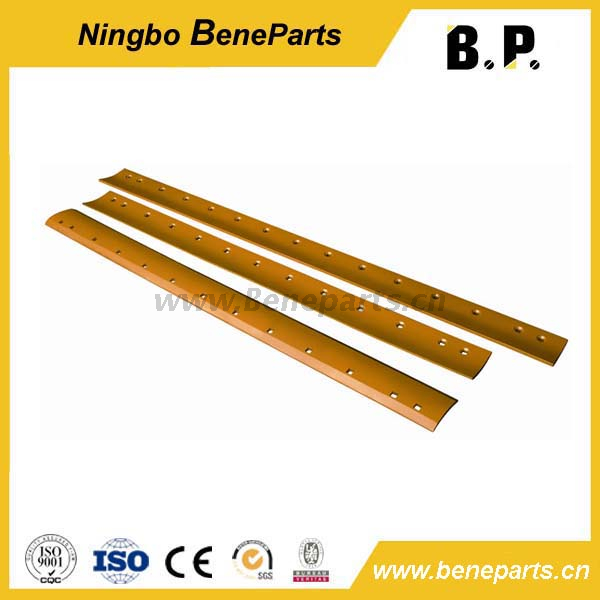

9W2334

Curved grader blade

Applied Machine: motor grader

Material: High carbon steel, Heat treated boron steel (30MnB)

Weight: 35.5kgs

Width: 152mm

Thickness: 19mm

Length: 1828mm

Bolt: 3/4'' plow bolt

Boult quantity: 13
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button
Part No.:9W2334
Description:Curved grader blade
Applied Machine:Motor grader
Material:High carbon steel, Heat treated boron steel (30MnB)


Weight:35.5Kg
Width:152mm
Thickness:19mm
Length:1828mm
Bolt:3/4'' plow bolt
Bolt Qty.:13



Part NumberMeasurement (mm)DescriptionWeight(Kgs)
135-67381219mmX203mmX13mm  3/4"X9DBC Grader Blades23
8J89802438mmX203mmX13mm  5/8"X17DBC Grader Blades45.5
8D27892133mmX203mmX13mm  5/8"X15DBC Grader Blades40
8D27881828mmX203mmX13mm  5/8"X13DBC Grader Blades34
9J38631524mmX203mmX13mm  5/8"X11DBC Grader Blades28
3G79651219mmX203mmX13mm  5/8"X9DBC Grader Blades23
9W23352133mmX152mmX19mm  3/4"X15DBC Grader Blades42
7T16442133mmX152mmX19mm  5/8"X15DBC Grader Blades42
7T16351828mmX152mmX19mm  5/8"X13DBC Grader Blades35.5
7T16421524mmX152mmX19mm  5/8"X11DBC Grader Blades30
7T16292438mmX152mmX16mm  3/4"X17DBC Grader Blades39
7T16262133mmX152mmX16mm  3/4"X15DBC Grader Blades34
7T16371828mmX152mmX16mm  3/4"X13DBC Grader Blades29
7T16322438mmX152mmX16mm  5/8"X17DBC Grader Blades39
7T16452133mmX152mmX16mm  5/8"X15DBC Grader Blades34
5B55622133mmX152mmX16mm  5/8"X9DBC Grader Blades34
7T16331828mmX152mmX16mm  5/8"X13DBC Grader Blades29
7T16401524mmX152mmX16mm  5/8"X11DBC Grader Blades25
9W23022438mmX152mmX13mm  3/4"X17DBC Grader Blades31.5
9W23002133mmX152mmX13mm  3/4"X15DBC Grader Blades28
9W22981828mmX152mmX13mm  3/4"X13DBC Grader Blades24
9W23012438mmX152mmX13mm  5/8"X9DBC Grader Blades31.5
9W22992133mmX152mmX13mm  5/8"X15DBC Grader Blades28
9W22971828mmX152mmX13mm  5/8"X13DBC Grader Blades24
9W22951524mmX152mmX13mm  5/8"X11DBC Grader Blades20
9W22931219mmX152mmX13mm  5/8"X9DBC Grader Blades16
235-70-121402438mmX203mmX19mm  3/4"X17DBC Grader Blades67
234-70-126702133mmX203mmX19mm  5/8"X15DBC Grader Blades59
232-70-528501828mmX203mmX19mm  5/8"X13DBC Grader Blades50
