1. Description:
| Part No.: | 2713-1219SK |

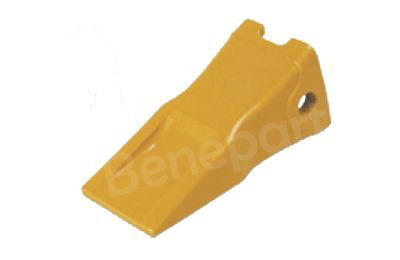

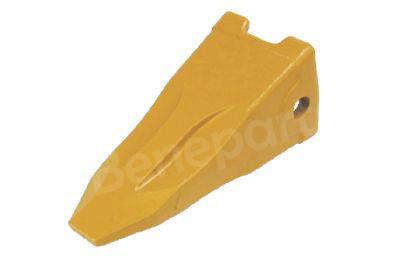

| Description: | Tooth |
| Brand: | DOOSAN |
| Logo: | Beneparts |
| Color: | Caterpillar Yellow or others |
| Weight: | 6.50Kgs |
| | |
| Applied Machine | DH210 DH220 DH225 |
| Production Method: | Casting |
| Material: | Alloy steel |
| Chemical Component: | Please contact with our sales to know details. |
| Hardness: | HB 470-520 |
| Impact: | ≥15J (25ºC) |
| Tensile Strength: | ≥1450Rm-N/mm⊃2; |
| Yield Strength: | ≥1100Re-N/mm⊃2; |
2. Popular items blow for reference:
| TOOTH | CAT | ESCO | H&L |
| J SERIES | K SERIES | CONICAL | SUPER V | HELILOK VERTALOK | ULTRA LOK | SIDE FLEX PIN |
| 1 | | | | V13 | | | 2AF |
| 2 | J200 1U3202 | | 18 | V17-V18 | 17 | U20 | 230 |
| 3 | J220 6Y3222 | | 25 | V19 | 19 | | 240 |
| 4 | J250 1U3252 | | 30 | V23 | 21 | U25 | 250 |
| 5 | J300 1U3302 | K80 | 35 | V29 | 27 | U30 | 270 |
| 6 | J350 1U3352 | K90 | 40 | V33 | | U35 | 31 |
| 7 | J400 7T3402 | K100 | 45 | V39 | 37 | U40 | |
| 8 | J460 9W8452 | K110 | 50 | V43 | 47 | U45 | 32 |
| 9 | J550 9W8552 | K130 | 55 | V51 | 57 | U55 | 33 |
| 10 | J660 616602 | K150 | 65 | V59 | | U60 | |
| 11 | J700 4T4702 | K170 | 70 | V61 | 67 | U70 | |
| 12 | J800 618802 | | | V69 | | U80 | |
| TOOTH | KOMATSU | COMBI | BOFORS | HENSLEY | MTG |
| SIDE PIN | K-MAX | C-LOCK | B-LOCK | PARABOLIC | XS | KINGMET |
| 1 | | | MINI/MIDI | | | 04 | MG5 |
| 2 | W8 (20X-) | | C0 | B0 | X156 | 05 | MG8 |
| 3 | | | C0 | B1 | X160 X162 | 10 | MG10 |
| 4 | | 15 | C1 | B2 | X220 X225 | 15 | MG15 |
| 5 | 200 (205-) | 20 | C2 | | X290 X310 | 20 | MG20 |
| 6 | | 25 | C3 | B3 | X330 | 25 | MG30 |
| 7 | 300 (207-) | 30 | C3.5 | | X370 X400 | 30 | MG40 |
| 8 | 400 (208-) | 40 | C4 | B4 | X410 | 40 | MG55 |
| 9 | | 50 | | | X450 X475 | 50 | MG65 |
| 10 | 650 (209-) | 70 | C5 | B5 | X500 | 50 | MG80 |
| 11 | | 85 | | | X550 X600 | 85 | MG125 |
| 12 | 1000 (21N-) | | C6 | | | 115 | MG200 |
3.Company information
Ningbo Beneparts Machinery co., Ltd as your reliable G.E.T parts supplier, offering full range of replacement parts suitable for all kinds of earthmoving machines which apply to mining, construction, agriculture etc. Like Excavator, Bulldozer, Loader, Backhoe, Scraper, Crusher and so on. The replacement parts that we supply including casting parts like bucket teeth, adapter, lip shroud, protector, ripper shank etc. and forged parts like forged bucket teeth, cutting edge, grader blades, segment, end bit etc. and also wear-resistant parts like chocky bars, wear buttons, chromium combined wear plate etc. and matched parts like pin, washer, bolts and nuts etc.. Our parts cover machine brands Caterpillar, Komatsu, Volvo Doosan, Daewoo, Hyundai, Case, JCB, Kobelco, Liebherr John Deere etc.
Beneparts has a very strong sales team and firmly cooperated manufacturer with high-tech and focus on quality with more than 28 years experience.
Our advantages are four fold, our:
1.strong technical team, and we have the ability to formulate materials to meetthe specific needs of our customer's projects.
2.Perfect quality monitoring system, and full range of advanced facilities, like Component analysis machine, Impact Machine, Tensile Strength machine etc.
3. Rich experience to do OEM/ODM business, we can develop items as per drawings and samples if you have specific requirement.
4. Efficient management, we can short delivery time and we have good after sale service which keep long term business cooperation with our customers.
Our commitment to you is always providing quick, convenient, effective customer service.
Look forward to meeting you!
