CB40

Availability:
Quantity:
sharethis sharing button
  • CB40

1. Description:
Name:Chocky bars CB40
Descriptions:
Material: Cr white iron and mild steel
Hardness: HRC63

Easy to cut - allowing you to customize the protection to different specifications
Easy to bend - offers protection on a contoured surface.
Use chocky bars with pre-notched backing plate.
Available in 5 sizes - with either standard or pre-notched backing plate.

Applications:
Bucket wear strips.
Replaces hard facing for augers, directional drill heads, foundation drilling, raise bore drilling.
Fan blade liners.
Pug mill paddles, tip and scrapers.
Recycling industry.
Road planer skids and pick protectors.
Replaces hard facing for pump housings and impellors

2. Our products range
Wear Parts Chocky Bars CB40 Domite White Iron


3. Popular items blow for reference:
Wear Parts Chocky Bars CB40 Domite White Iron

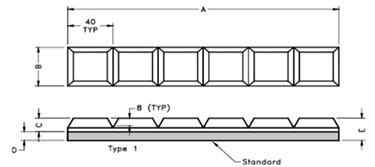

Part No. A (mm) B (mm) C (mm) D (mm) E (mm) Weight (kg)
CB25 240 25 15 8 23 0.9
CB40 240 40 15 8 23 1.5
CB50 240 50 15 8 23 1.9
CB65 240 65 15 8 23 2.5
CB90 240 90 15 8 23 4.2
CB100 240 100 15 8 23 4.4
CB130 240 130 15 8 23 5.2

Wear Parts Chocky Bars CB40 Domite White Iron

Part No. A (mm) B (mm) C (mm) D (mm) E (mm) Weight (kg)
WB60 60 45 10 17 27 0.7
WB75 75 50 10 17 27 0.9
WB90 90 45 10 17 27 1.2
WB115 115 90 12 20 32 2.6
WB150 150 130 16 25 41 5.8

Wear Parts Chocky Bars CB40 Domite White Iron

Part No. A (mm) B (mm) C (mm) D (mm) E (mm) Weight (kg)
DLP-1920 75 25 17 8 25 0.7
DLP-1921 100 50 17 8 25 1.1
DLP-1994 100 70 24 8 32 1
DLP-2196 130 80 15 8 23 1.3
DLP-4771 148 108 25 10 35 2.3

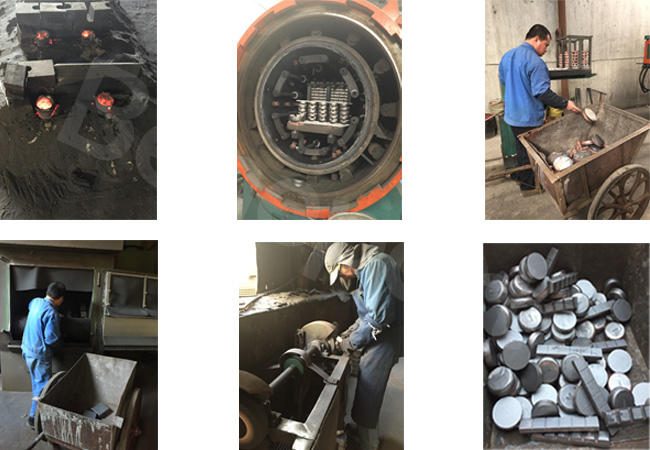

4. Our production line:
Wear Parts Chocky Bars CB40 Domite White Iron

5.Company information

Ningbo Beneparts Machinery co., Ltd as your reliable G.E.T parts supplier, offering full range of replacement parts suitable for all kinds of earthmoving machines which apply to mining, construction, agriculture etc. Like Excavator, Bulldozer, Loader, Backhoe, Scraper, Crusher and so on. The replacement parts that we supply including casting parts like bucket teeth, adapter, lip shroud, protector, ripper shank etc. and forged parts like forged bucket teeth, cutting edge, grader blades, segment, end bit etc. and also wear-resistant parts like chocky bars, wear buttons, chromium combined wear plate etc. and matched parts like pin, washer, bolts and nuts etc.. Our parts cover machine brands Caterpillar, Komatsu, Volvo Doosan, Daewoo, Hyundai, Case, JCB, Kobelco, Liebherr John Deere etc.

Beneparts has a very strong sales team and firmly cooperated manufacturer with high-tech and focus on quality with more than 28 years experience.

Our advantages are four fold, our:
1.strong technical team, and we have the ability to formulate materials to meetthe specific needs of our customer's projects.
2.Perfect quality monitoring system, and full range of advanced facilities, like Component analysis machine, Impact Machine, Tensile Strength machine etc.
3. Rich experience to do OEM/ODM business, we can develop items as per drawings and samples if you have specific requirement.
4. Efficient management, we can short delivery time and we have good after sale service which keep long term business cooperation with our customers.

Our commitment to you is always providing quick, convenient, effective customer service.
Look forward to meeting you!


Wear Parts Chocky Bars CB40 Domite White Iron
