Construction Machinery Parts Cat 4t3512 Curved Blade

Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

1. Description

Part No.: 4T3512
Description: Curved grader blade
Applied Machine: Motor grader
Material: High carbon steel, Heat treated boron steel (30MnB)

Measurement:
Weight: 45Kg
Width: 203mm
Thickness: 25mm
Length: 1219mm
Bolt: 3/4'' plow bolt
Bolt Qty.: 9

2. Our products range:
Construction Machinery Parts Cat 4t3512 Curved Blade

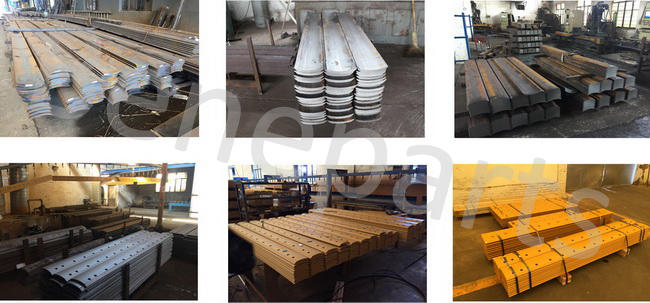

3. Production line:
Construction Machinery Parts Cat 4t3512 Curved Blade

4. Popular items blow for reference:

Part Number Measurement (mm) Description Brand Weight(Kgs)
232-70-12142 1828mmX152mmX13mm  5/8"X8 DBC Grader Blades Komatsu 24
4T3512 1219mmX203mmX25mm  3/4"X9 DBC Grader Blades CAT 45
7T1627 2438mmX203mmX19mm  3/4"X17 DBC Grader Blades CAT 67
7T1625 2133mmX203mmX19mm  3/4"X15 DBC Grader Blades CAT 59
7T1638 1828mmX203mmX19mm  3/4"X13 DBC Grader Blades CAT 50
9W2341 1524mmX203mmX19mm  3/4"X11 DBC Grader Blades CAT 42
9W2339 1219mmX203mmX19mm  3/4"X9 DBC Grader Blades CAT 33.5
7T1630 2438mmX203mmX19mm  5/8"X17 DBC Grader Blades CAT 67
7T1623 2133mmX203mmX19mm  5/8"X15 DBC Grader Blades CAT 59
7T1634 1828mmX203mmX19mm  5/8"X13 DBC Grader Blades CAT 50
9W2340 1524mmX203mmX19mm  5/8"X11 DBC Grader Blades CAT 42
9W2338 1219mmX203mmX19mm  5/8"X9 DBC Grader Blades CAT 33.5
7T1628 2438mmX203mmX16mm  3/4"X17 DBC Grader Blades CAT 56
7T1624 2133mmX203mmX16mm  3/4"X15 DBC Grader Blades CAT 49
7T1639 1828mmX203mmX16mm  3/4"X13 DBC Grader Blades CAT 42
9W2329 1219mmX203mmX16mm  3/4"X9 DBC Grader Blades CAT 28
7T1631 2438mmX203mmX16mm  5/8"X17 DBC Grader Blades CAT 56
7T1643 2133mmX203mmX16mm  5/8"X15 DBC Grader Blades CAT 49
7T1636 1828mmX203mmX16mm  5/8"X13 DBC Grader Blades CAT 42
7T1641 1524mmX203mmX16mm  5/8"X11 DBC Grader Blades CAT 35
9W2328 1219mmX203mmX16mm  5/8"X9 DBC Grader Blades CAT 28
3G1628 2438mmX203mmX13mm  3/4"X17 DBC Grader Blades CAT 45.5
3G1627 2133mmX203mmX13mm  3/4"X15 DBC Grader Blades CAT 40
3G1626 1828mmX203mmX13mm  3/4"X13 DBC Grader Blades CAT 34
134-1779 1524mmX203mmX13mm  3/4"X11 DBC Grader Blades CAT 28
135-6738 1219mmX203mmX13mm  3/4"X9 DBC Grader Blades CAT 23
8J8980 2438mmX203mmX13mm  5/8"X17 DBC Grader Blades CAT 45.5
8D2789 2133mmX203mmX13mm  5/8"X15 DBC Grader Blades CAT 40
8D2788 1828mmX203mmX13mm  5/8"X13 DBC Grader Blades CAT 34
9J3863 1524mmX203mmX13mm  5/8"X11 DBC Grader Blades CAT 28
3G7965 1219mmX203mmX13mm  5/8"X9 DBC Grader Blades CAT 23
9W2335 2133mmX152mmX19mm  3/4"X15 DBC Grader Blades CAT 42
7T1644 2133mmX152mmX19mm  5/8"X15 DBC Grader Blades CAT 42
7T1635 1828mmX152mmX19mm  5/8"X13 DBC Grader Blades CAT 35.5
7T1642 1524mmX152mmX19mm  5/8"X11 DBC Grader Blades CAT 30
7T1629 2438mmX152mmX16mm  3/4"X17 DBC Grader Blades CAT 39
7T1626 2133mmX152mmX16mm  3/4"X15 DBC Grader Blades CAT 34
7T1637 1828mmX152mmX16mm  3/4"X13 DBC Grader Blades CAT 29
7T1632 2438mmX152mmX16mm  5/8"X17 DBC Grader Blades CAT 39
7T1645 2133mmX152mmX16mm  5/8"X15 DBC Grader Blades CAT 34
5B5562 2133mmX152mmX16mm  5/8"X9 DBC Grader Blades CAT 34
7T1633 1828mmX152mmX16mm  5/8"X13 DBC Grader Blades CAT 29
7T1640 1524mmX152mmX16mm  5/8"X11 DBC Grader Blades CAT 25
9W2302 2438mmX152mmX13mm  3/4"X17 DBC Grader Blades CAT 31.5
9W2300 2133mmX152mmX13mm  3/4"X15 DBC Grader Blades CAT 28
9W2298 1828mmX152mmX13mm  3/4"X13 DBC Grader Blades CAT 24
9W2301 2438mmX152mmX13mm  5/8"X9 DBC Grader Blades CAT 31.5
9W2299 2133mmX152mmX13mm  5/8"X15 DBC Grader Blades CAT 28
9W2297 1828mmX152mmX13mm  5/8"X13 DBC Grader Blades CAT 24
9W2295 1524mmX152mmX13mm  5/8"X11 DBC Grader Blades CAT 20
9W2293 1219mmX152mmX13mm  5/8"X9 DBC Grader Blades CAT 16
235-70-12140 2438mmX203mmX19mm  3/4"X17 DBC Grader Blades Komatsu 67
234-70-12670 2133mmX203mmX19mm  5/8"X15 DBC Grader Blades Komatsu 59
232-70-52850 1828mmX203mmX19mm  5/8"X13 DBC Grader Blades Komatsu 50
234-70-12710 2133mmX203mmX16mm  3/4"X15 DBC Grader Blades Komatsu 49
234-70-12550 2133mmX203mmX16mm  3/4"X9 DBC Grader Blades Komatsu 49
234-70-12193 2133mmX152mmX16mm  5/8"X15 DBC Grader Blades Komatsu 34
232-70-12143 1828mmX152mmX16mm  5/8"X13 DBC Grader Blades Komatsu 29
238-70-12220 1524mmX152mmX16mm  5/8"X11 DBC Grader Blades Komatsu 25
234-70-12192 2133mmX152mmX13mm  5/8"X9 DBC Grader Blades Komatsu 28
232-70-12140  1828mmX152mmX13mm  5/8"X8 DBC Grader Blades Komatsu 24
233-70-12141 1524mmX152mmX13mm  5/8"X7 DBC Grader Blades Komatsu 20
4T2236 2438mmX203mmX25mm  3/4"X17 DBC Grader Blades CAT 90
4T2233 2133mmX203mmX25mm  3/4"X15 DBC Grader Blades CAT 79
4T2231 1828mmX203mmX25mm  3/4"X13 DBC Grader Blades CAT 68
4T3511 1524mmX203mmX25mm  3/4"X11 DBC Grader Blades CAT 56.5
109-3150  1219mmX203mmX25mm  3/4"X9 DBC Grader Blades CAT 45
4T2237 2438mmX203mmX25mm  5/8"X17 DBC Grader Blades CAT 90
4T2242 2133mmX203mmX25mm  5/8"X15 DBC Grader Blades CAT 79
4T2244 1828mmX203mmX25mm  5/8"X13 DBC Grader Blades CAT 68
4T2240 1524mmX203mmX25mm  5/8"X11 DBC Grader Blades CAT 56.5
7D1949  2438mmX203mmX19mm  3/4"X17 DBC Grader Blades CAT 67
7D1577  2133mmX203mmX19mm  3/4"X15 DBC Grader Blades CAT 59
7D1576  1828mmX203mmX19mm  3/4"X13 DBC Grader Blades CAT 50
4Z8131  1524mmX203mmX19mm  3/4"X11 DBC Grader Blades CAT 42
109-3124  1219mmX203mmX19mm  3/4"X9 DBC Grader Blades CAT 33.5
5D9732  2438mmX203mmX19mm  5/8"X17 DBC Grader Blades CAT 67
5D9559  2133mmX203mmX19mm  5/8"X15 DBC Grader Blades CAT 59
5D9558  1828mmX203mmX19mm  5/8"X13 DBC Grader Blades CAT 50
9W6252  1524mmX203mmX19mm  5/8"X11 DBC Grader Blades CAT 42
132-1087  1219mmX203mmX19mm  5/8"X9 DBC Grader Blades CAT 33.5
8J9821  2438mmX203mmX16mm  3/4"X17 DBC Grader Blades CAT 56
7D1158  2133mmX203mmX16mm  3/4"X15 DBC Grader Blades CAT 49
9J7701  1828mmX203mmX16mm  3/4"X13 DBC Grader Blades CAT 42
9W2330 1524mmX203mmX16mm  3/4"X11 DBC Grader Blades CAT 35
134-1773  1219mmX203mmX16mm  3/4"X9 DBC Grader Blades CAT 28
5D9731  2438mmX203mmX16mm  5/8"X17 DBC Grader Blades CAT 56
5D9561  2133mmX203mmX16mm  5/8"X15 DBC Grader Blades CAT 49
5D9562  1828mmX203mmX16mm  5/8"X13 DBC Grader Blades CAT 42
7D4509  1524mmX203mmX16mm  5/8"X11 DBC Grader Blades CAT 35
132-1088  1219mmX203mmX16mm  5/8"X9 DBC Grader Blades CAT 28
9W2318  2438mmX203mmX13mm  3/4"X17 DBC Grader Blades CAT 45.5
9W2316  2133mmX203mmX13mm  3/4"X15 DBC Grader Blades CAT 40
9W2314  1828mmX203mmX13mm  3/4"X13 DBC Grader Blades CAT 34
9W2312  1524mmX203mmX13mm  3/4"X11 DBC Grader Blades CAT 28
9W2310  1219mmX203mmX13mm  3/4"X9 DBC Grader Blades CAT 23
9W2317  2438mmX203mmX13mm  5/8"X17 DBC Grader Blades CAT 45.5
9W2315  2133mmX203mmX13mm  5/8"X15 DBC Grader Blades CAT 40
9W2313  1828mmX203mmX13mm  5/8"X13 DBC Grader Blades CAT 34
9W2311  1524mmX203mmX13mm  5/8"X11 DBC Grader Blades CAT 28
9W2309  1219mmX203mmX13mm  5/8"X9 DBC Grader Blades CAT 23
4Z8785  2133mmX152mmX19mm  3/4"X15 DBC Grader Blades CAT 42
9W2334 1828mmX152mmX19mm  3/4"X13 DBC Grader Blades CAT 35.5
5D9557  2133mmX152mmX19mm  5/8"X15 DBC Grader Blades CAT 42
5D9556  1828mmX152mmX19mm  5/8"X13 DBC Grader Blades CAT 35.5
3G7966  1524mmX152mmX19mm  5/8"X11 DBC Grader Blades CAT 30
9J3655  2438mmX152mmX16mm  3/4"X17 DBC Grader Blades CAT 39
9J3658  2133mmX152mmX16mm  3/4"X15 DBC Grader Blades CAT 34
9J3657  1828mmX152mmX16mm  3/4"X13 DBC Grader Blades CAT 29
9W2327 1524mmX152mmX16mm  3/4"X11 DBC Grader Blades CAT 25
9W2326 1219mmX152mmX16mm  3/4"X9 DBC Grader Blades CAT 20
8J4043  2438mmX152mmX16mm  5/8"X17 DBC Grader Blades CAT 39
5D9554  2133mmX152mmX16mm  5/8"X15 DBC Grader Blades CAT 34
5B5561  2133mmX152mmX16mm  5/8"X9 DBC Grader Blades CAT 34
5D9553  1828mmX152mmX16mm  5/8"X13 DBC Grader Blades CAT 29
5B5564 1828mmX152mmX16mm  5/8"X8 DBC Grader Blades CAT 29
7D4508  1524mmX152mmX16mm  5/8"X11 DBC Grader Blades CAT 25
5B5567 1524mmX152mmX16mm  5/8"X7 DBC Grader Blades CAT 25
9W2325 1219mmX152mmX16mm  5/8"X9 DBC Grader Blades CAT 20


5. Our warehouse:
Construction Machinery Parts Cat 4t3512 Curved Blade

6.Company information

Ningbo Beneparts Machinery co., Ltd as your reliable G.E.T parts supplier, offering full range of replacement parts suitable for all kinds of earthmoving machines which apply to mining, construction, agriculture etc. Like Excavator, Bulldozer, Loader, Backhoe, Scraper, Crusher and so on. The replacement parts that we supply including casting parts like bucket teeth, adapter, lip shroud, protector, ripper shank etc. and forged parts like forged bucket teeth, cutting edge, grader blades, segment, end bit etc. and also wear-resistant parts like chocky bars, wear buttons, chromium combined wear plate etc. and matched parts like pin, washer, bolts and nuts etc.. Our parts cover machine brands Caterpillar, Komatsu, Volvo Doosan, Daewoo, Hyundai, Case, JCB, Kobelco, Liebherr John Deere etc.

Beneparts has a very strong sales team and firmly cooperated manufacturer with high-tech and focus on quality with more than 28 years experience.

Our advantages are four fold, our:
1.strong technical team, and we have the ability to formulate materials to meetthe specific needs of our customer's projects.
2.Perfect quality monitoring system, and full range of advanced facilities, like Component analysis machine, Impact Machine, Tensile Strength machine etc.
3. Rich experience to do OEM/ODM business, we can develop items as per drawings and samples if you have specific requirement.
4. Efficient management, we can short delivery time and we have good after sale service which keep long term business cooperation with our customers.

Our commitment to you is always providing quick, convenient, effective customer service.
Look forward to meeting you!
