1. Description:
| Part No.: | 713-00032TL |

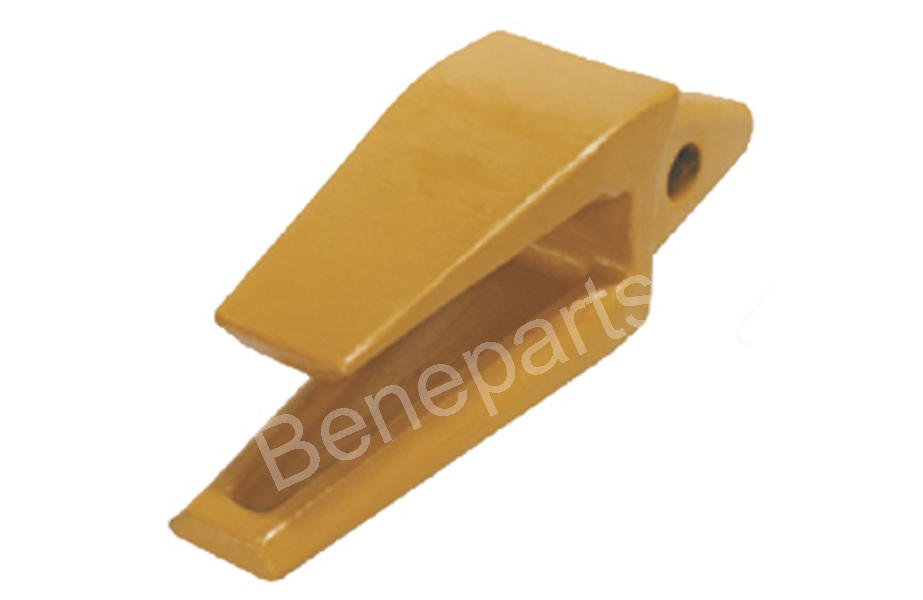

| Description: | Bucket adapter |
| Brand: | DOOSAN |
| Logo: | Beneparts or OEM |
| Color: | Caterpillar Yellow or others |
| Weight: | 9.20Kgs |
| | |
| Applied Machine | Heavy duty machine |
| Production Method: | Casting |
| Material: | Alloy steel |
| Chemical Component: | Please contact with our sales to know details. |
| Hardness: | HB 470-520 |
| Impact: | ≥15J (25ºC) |
| Tensile Strength: | ≥1450Rm-N/mm² |
| Yield Strength: | ≥1100Re-N/mm² |
2. Popular items blow for reference:
| Part number | Measurement | Description | Weight/kg | Model |
| 2713-00057 | S130 | Tooth Standard | 4.30 | DH130 DH150 |
| 2713-0033-50 | S360 | Adapter | 17.10 | S360 |
| 2713-0033-55 | S320 | Adapter | 17.90 | S360 |
| 2713-0033-60 | S360 | Adapter | 17.90 | S360 |
| 2713-1045 | S55 | Side Cutter | 2.10 | DH55 |
| 2713-1046 | S55 | Side Cutter | 2.10 | DH55 |
| 2713-1047 | S280 | Side Cutter | 17.80 | DH290 |
| 2713-1048 | S280 | Side Cutter | 17.80 | DH290 |
| 2713-1059 | S200 | Side cutter | 15.00 | DH210 DH220 DH225 |
| 2713-1060 | S200 | Side cutter | 15.00 | DH210 DH220 DH225 |
| 2713-1215 | S130 | Tooth Standard | 4.30 | DH130 DH150 |
| 2713-1219-2 | S280 | Tooth Standard | 7.00 | DH300 DH290-5 |
| 2713-1221A | S130 | Tooth Standard | 3.70 | DH130 DH150 |
| 2713-1228 | S130 | Side Cutter | 7.80 | DH130 |
| 2713-1229 | S130 | Side Cutter | 7.80 | DH130 |
| 2713-1236RC | s420 | Tooth Rock Chisel | 17.30 | DH420 |
| 2713-1240 | S420 | Side Cutter | 22.00 | DH420 |
| 2713-1241 | S420 | Side Cutter | 22.00 | DH420 |
| 2713-6034 | S280 | Side Cutter | 17.80 | DH290 |
| 2713-6035 | S280 | Side Cutter | 17.80 | DH290 |
| 2713-6043 | DH280 | Tooth Standard | 7.00 | DH280 |
| 2713-6045 | DH450 | Tooth Standard | 18.40 | DH450 |
| 2713-6052 | S55 | Side Cutter | 2.10 | DH55 |
| 2713-6053 | DH320 | Tooth Standard | 7.50 | S50 DH420 / DH320 S320 DH360 |
| 2713-9038 | DH280 | Tooth Standard | 7.20 | DH280 |
| 2713-9039 | DH450 | Adapter | 28.00 | DH450 |
| 2713-9040 | DH450 | Tooth Standard | 18.40 | DH450 |
| 2713-9041RC | S200 | Tooth Fish Scale | 6.60 | DH210 DH220 DH225 |
| 2713-9043-45 | S280 | Adapter | 12.60 | DH320 |
| 2713-9044 | DH320 | Tooth Standard | 7.50 | S50 DH420 |
| 2713-9044RC | DH320 | Tooth Rock | 8.50 | DH320 S320 DH360 |
| 2713-9215-40 | S130 | Adapter | 7.30 | DH130 |
| 2713Y1237-60 | S420 | Adapter | 24.60 | S420 S450 |
| 713-00028A | | Tooth | 17.00 | DX420LC |
| 713-00032TL | S360 | Teeth Tiger | 9.20 | DH370 |
| K1038006 | | Tooth | 5.20 | |
| K9005349 | | Tooth | 5.20 | |
| K9005350-35 | | Adapter | 9.00 | |
| K9005350-40 | | Adapter | 8.40 | |
| KP9005354-420 | S420 | Adapter | 24.50 | S420 S450 |
3.Company information
Ningbo Beneparts Machinery co., Ltd as your reliable G.E.T parts supplier, offering full range of replacement parts suitable for all kinds of earthmoving machines which apply to mining, construction, agriculture etc. Like Excavator, Bulldozer, Loader, Backhoe, Scraper, Crusher and so on. The replacement parts that we supply including casting parts like bucket teeth, adapter, lip shroud, protector, ripper shank etc. and forged parts like forged bucket teeth, cutting edge, grader blades, segment, end bit etc. and also wear-resistant parts like chocky bars, wear buttons, chromium combined wear plate etc. and matched parts like pin, washer, bolts and nuts etc.. Our parts cover machine brands Caterpillar, Komatsu, Volvo Doosan, Daewoo, Hyundai, Case, JCB, Kobelco, Liebherr John Deere etc.
Beneparts has a very strong sales team and firmly cooperated manufacturer with high-tech and focus on quality with more than 28 years experience.
Our advantages are four fold, our:
1.strong technical team, and we have the ability to formulate materials to meetthe specific needs of our customer's projects.
2.Perfect quality monitoring system, and full range of advanced facilities, like Component analysis machine, Impact Machine, Tensile Strength machine etc.
3. Rich experience to do OEM/ODM business, we can develop items as per drawings and samples if you have specific requirement.
4. Efficient management, we can short delivery time and we have good after sale service which keep long term business cooperation with our customers.
Our commitment to you is always providing quick, convenient, effective customer service.
Look forward to meeting you!
